#DP14207 BLACK TRANS PAN, GM 4L80, 4L80E

  • Model: DP14207
  • Shipping Weight: 5 lbs
  • Units in Stock: 2
  • Manufactured by: DERALE PERFORMANCE

$268.99

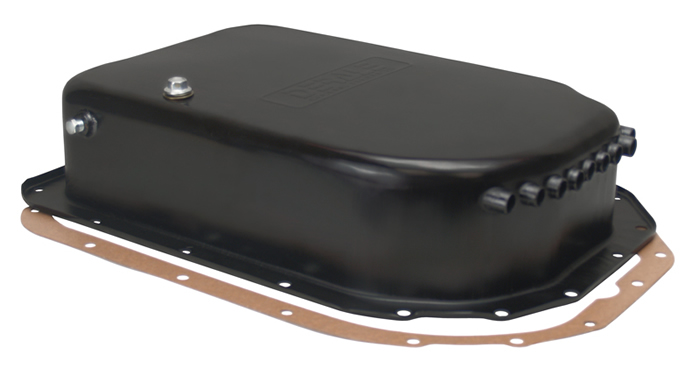

Derale's Transmission Cooling Pan #14207 uses air passing beneath the vehicle and redirects it to help lower transmission oil temperatures. Designed for GM's heavy duty 4L80E transmissions, this pan features brazed, turbulator-equipped airway tubes passing through the lower section of the transmission pan for more efficient cooling, each is individually pressure tested to ensure a leak-free pan. We've included a much stronger magnetic drain plug and rubber/steel reusable washer, in addition to a 1/8" NPT temperature sender bung located in the side of the pan. Finished with a durable black two-stage coating, each pan also includes neoprene gasket and 1/8" NPT temperature sender plug.

Specifications
  • Pan depth: 4-1/16"
  • Tube depth: 2-3/4"
  • Extra capacity: 4 qts. 16 oz.
  • Temp bung size: 1/8" NPT
Features
  • Heavy gauge stamped steel construction
  • Two stage heat dissipating black finish
  • 1/8" NPT temperature sender port
  • Reduces fluid temperatures 20-50°F
  • Increases fluid capacity by 4 qts. 16 oz.
  • Patented turbulator cooling tubes add heat transfer capability
  • Magnetic drain plug with increased magnetic strength and rubber/steel washer
  • Pan depth: 4-1/16"
